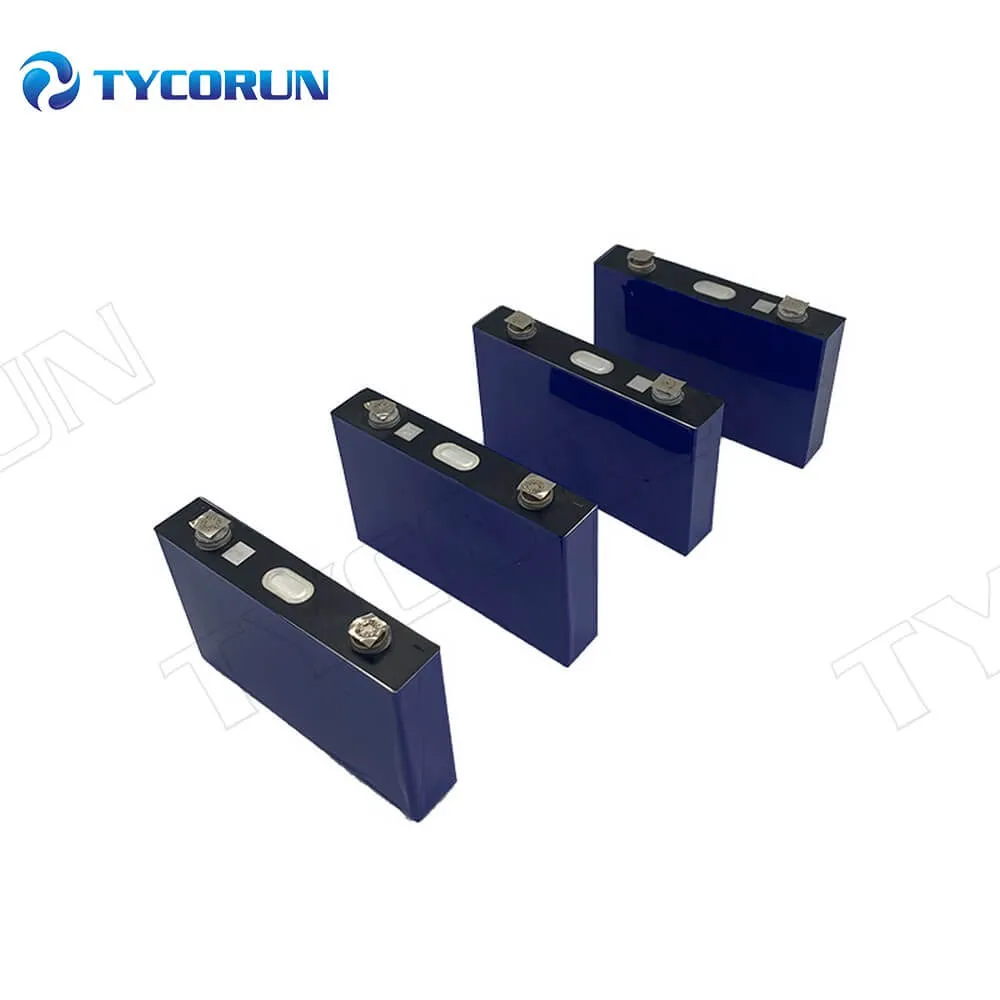

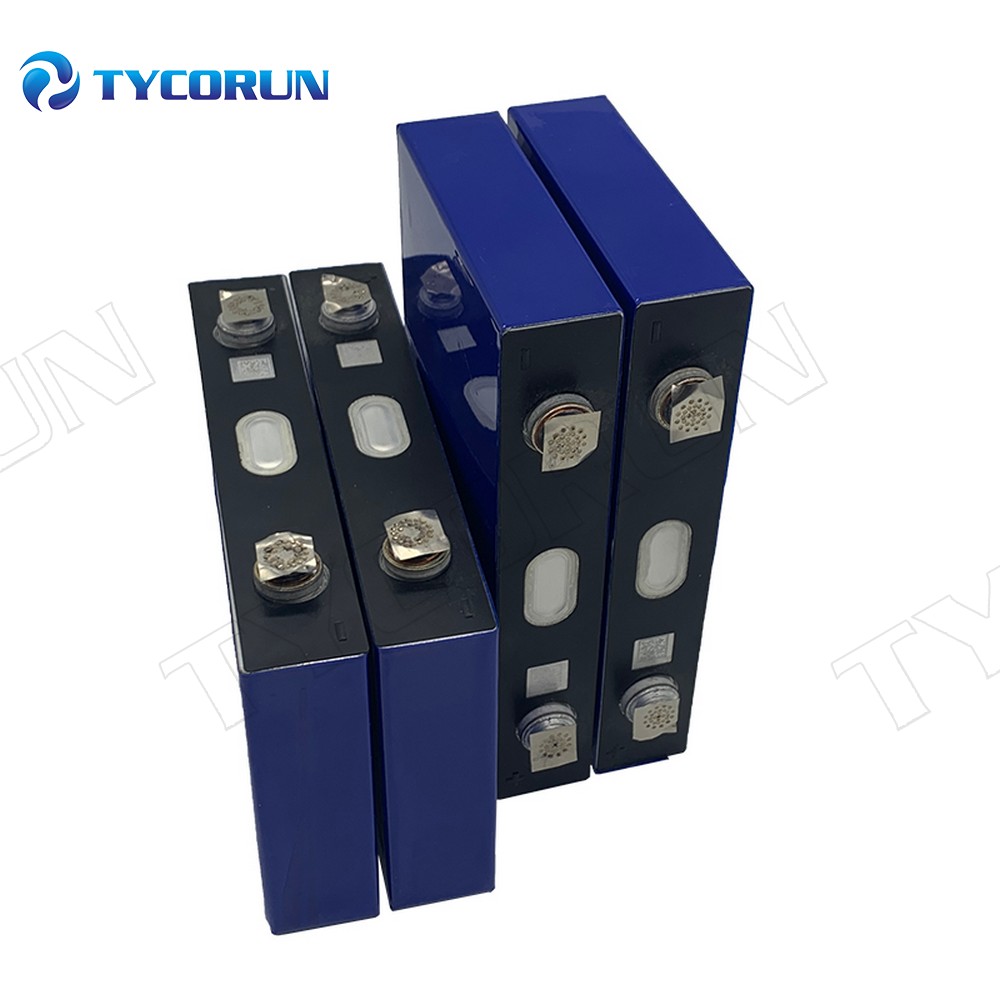

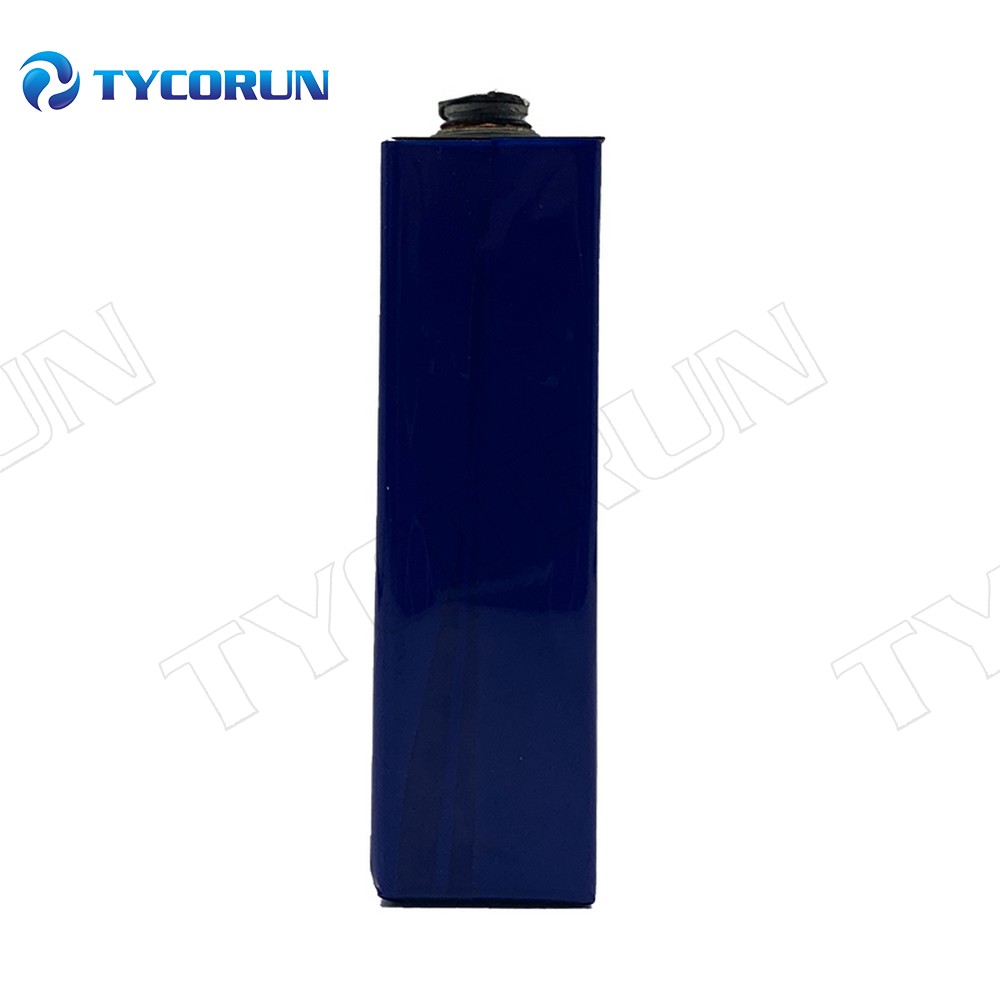

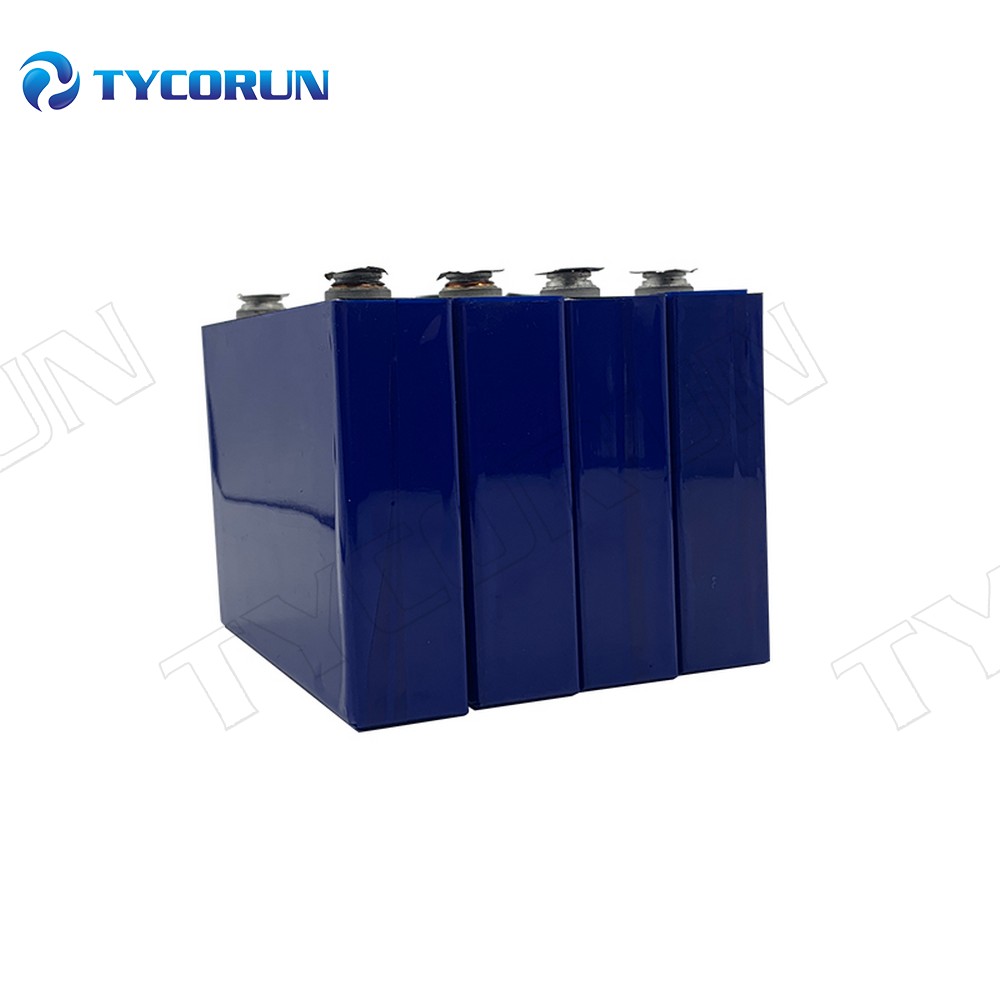

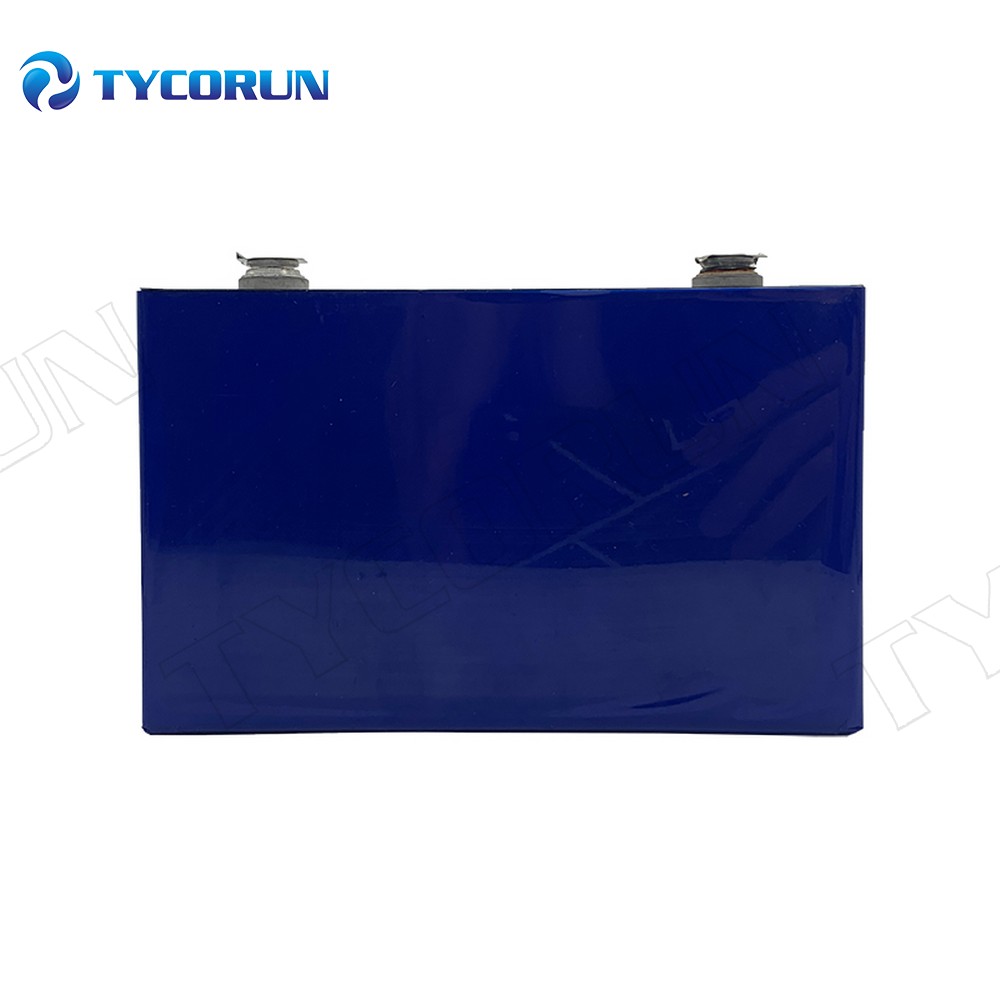

lithium ion battery cell 3.2v 280ah lifepo4 prismatic cell

Lithium ion battery cell 3.2v 280ah lifepo4 battery pack grade a cell prismatic batteries suppliers

The square lithium ion battery cells package has Several advantages:

  • 1. High reliability of square lithium ion battery cells package;
  • 2. Low power dissipation High energy efficiency of the system;
  • 3. square lithium ion battery cell package Relatively light weight, high energy density;
  • 4. The structure is simple and the expansion capacity is relatively convenient.It is an important option to improve the energy density by increasing the monomer capacity.
  • 5. If the capacity of the unit is large, the system structure is relatively simple, which makes it possible to monitor the unit one by one.
  • Another benefit of the simplicity of the system is that it is relatively stable.

High Quality:

  • * 100% pre-tested before leaving the factory,We will matched(capacity,voltage,resistance) all cells before delivery
  • * Specialized manufacturer with more than 10-years experience
  • * Excellent customer service and technical support
  • * Strict quality control system and professional R&D department.
  • * The QR code is intact, Grade A, Brand new.
  • * The price come with Bus bars and Bolts,one battery will come with one set bus bar and bolt(lithium ion battery cell package)
Lipo4 varicore 3.2v 280ah lifepo4 battery pack grade a cell prismatic batteries lithium ion battery cells
Name
TYCORUN ENERGY original grade a 280ah 3.2v lifepo4 prismatic lithium ion batteries cell
Model
TC050
TC100
TC200
TC280
Rated capacity
50ah
100ah
202ah
280ah
Nominal voltage
3.2V
Operating voltage
2.5~3.65V
Rated charge current
50A
50A
100A
140A
Max. continuous charge current
100A
100A
200A
280A
Rated discharge current
50A
50A
100A
140A
Max. continuous discharge current
150A
100A
200h
280A
80% DOD cyclic
≥3000 times
Size(T*W*H)mm
39 *148*95
27*174*207
54*173 *210
71*174*200
Cell weight
1.2Kg
2.3Kg
4.0Kg
5.5Kg
Energy density
140Wh /Kg
147Wh /Kg
165Wh /Kg
166Wh /Kg
Operating temperature
range
(charge )
0℃~55℃
Operating temperature
range
(discharge)
-20℃~55℃
Storage temperature range
-20℃~55℃

A. Yes, we welcome sample order to test and check quality.

A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions for the power inverter 3000w.Thirdly customer confirms the power inverter 3000w samples and places a deposit for formal order. Fourthly We arrange the production.

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

A. All of batteries are 2000 cycles life beyond 80% DOD. with 2 years warranty.
