The ultimate guide for 24v lithium ion battery manufacturer
24v lithium ion battery manufacturer
16-year professional lithium ion battery manufacturers, 10-year warranty on battery packs, using the best BMS protection board, protecting the lithium battery pack from overcharge, overdischarge, overcurrent, short circuit, etc, with excellent self-discharge rate. Configurable Bluetooth, can be connected in series and parallel. The heating function and other special functions can also be customized. Enough stock for the 10 series of 24v lithium ion battery. Can be shipped within 3 days.
The ultimate guide for 24v lithium ion battery manufacturer
Lithium ion batteries are rechargeable, and they are most commonly found in laptops, smartphones, smartwatches, electric vehicles, power storage for houses, etc. All these batteries have different voltages, which enable them to power various devices efficiently. Check this out: It is possible to have a lithium ion battery with different nominal voltages. For example, you can have a 12v or 24v lithium ion battery.
This article will help you understand: What a 24v lithium ion battery is, and the technology used to develop the battery; Specifications of a 24v lithium ion battery (50ah and 100ah); How to care for your 24v lithium ion battery; How to choose a good 24v lithium ion battery manufacturer and which is the best 24v lithium ion battery manufacturer. In addition, this article will give you some pertinent advice on how to pick up a good lithium ion battery company. Let’s dive right in!
1.What is a 24v lithium ion battery? What does 24v mean?
Let’s first look at what voltage means to understand the concept behind a 24v lithium ion battery clearly. Battery voltage is the difference in electrical potential between the anode (+) and cathode (-) terminals of the battery. The greater the difference, the higher the voltage. 24v means that the battery supplies 24v under a nominal load. A 24v lithium ion battery is a rechargeable battery. It comes with all the benefits of using a lithium ion battery, as you will find out throughout this article. You’re probably thinking to yourself: “What technology is used to develop a 24v lithium ion battery?”
2.What is the technology used to develop the 24v lithium ion battery?
Lithium Iron Phosphate (LiFePO4) is used to make the cathode. The anode is made from graphitic carbon electrodes together with a metal backing. A lithium iron phosphate battery made from the above technology has a nominal voltage of 3.2V per cell as you will find out. Connecting multiple single cells in series increases battery voltage, while wiring them in parallel increases battery capacity. 3.2V lithium iron phosphate cells can be assembled as required into a 3.2*(N)V battery pack.
3.How many cells are in a 24v battery?
Since a lithium iron phosphate battery cell has a nominal voltage of 3.2V per cell, connecting eight cells in series will give you a nominal voltage of 24v.
4.How to make a 24v lithium ion battery?
As discussed earlier in this article, we can have a 24v lithium ion battery by connecting eight cells, each having a nominal voltage of 3.2V. Lithium ion battery manufacturers connect these battery cells using a series arrangement to increase the battery’s voltage. Understanding the key differences in connecting lithium ion battery cells in a series or parallel is essential.
When a 24v lithium ion battery manufacturer connecting lithium cells in a series, the positive terminal of the battery cell is connected to the opposing end of the next cell in the arrangement. This arrangement can be repeated countless times, provided that you have the necessary budget and resources. Doing so increases the battery’s electric potential difference, creating a single, strong battery pack. It, therefore, means that connecting eight LiFePO4 battery cells will result the desired nominal voltage of 24v.

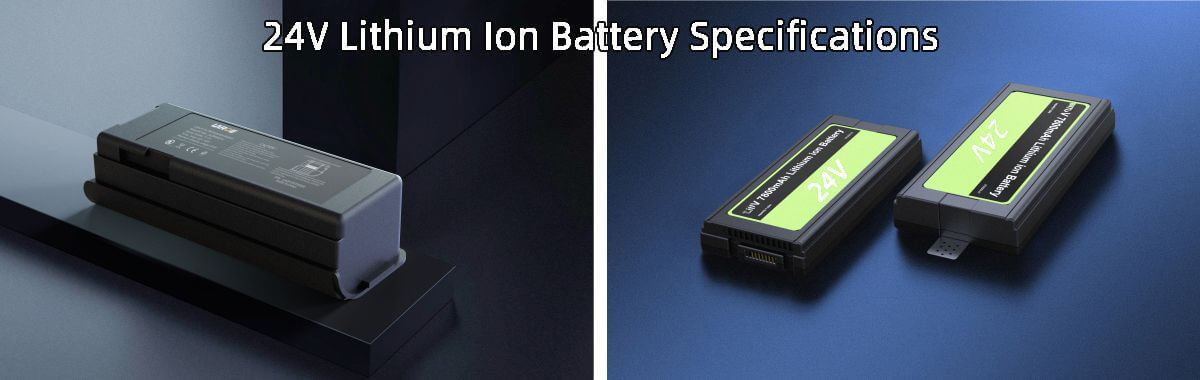

5.Specifications of 24v lithium ion battery
When acquiring 24v lithium ion battery, you need to understand its specifications. These specifications give by 24v a lithium ion battery manufacturer tell you if a lithium ion battery will be able to power effectively and efficiently what you’d want it to power. Apart from knowing the battery’s voltage, it is also essential to know its energy potential – how much energy this battery can contain and deliver. Battery energy is usually measured by amperes-hour (Ah).
Ah is the standard unit for measuring battery capacity, it is used to measure the speed (power) of charge flow in a circuit per unit time. The higher the Ah rating, the higher the battery’s storage capacity per cell. Also, a higher Ah rating directly translates to more power. Let’s look at the 24v 50Ah and the 24v 100Ah lithium ion batteries, respectively.

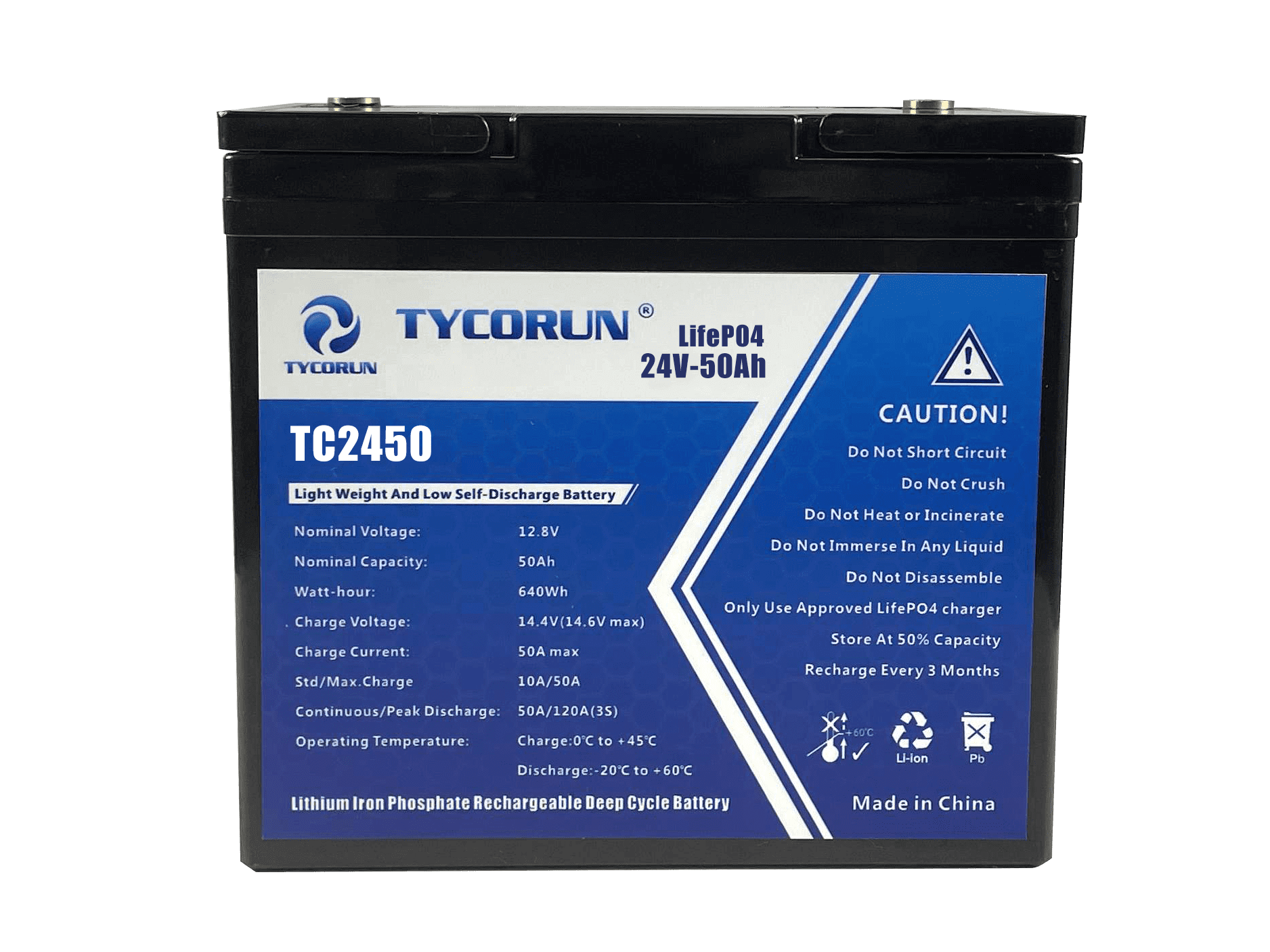

①24v 50ah lithium ion battery
Click on the picture for product details and its best price
Physics teaches us that power is measured in watts. On the other hand, Watts is an electric current in amperes (amps) multiplied by the battery’s voltage. This principle, therefore, affirms that the higher the Ah rating, the more power the battery possesses. “How long will 24v 50Ah lithium ion battery last?” is the question you are probably thinking to yourself.
To find out how long the battery will last, we should get to know the capacity of the battery. You’ll further need to consider finding out the watt-load the battery is expected to power. Once you do so, calculate the duration by dividing the battery’s Ah by its watt-load. For example, assuming the 24v 50Ah lithium ion battery has a watt-load of 25 amps, its running time will be 50Ah/25amps = 2 hours.And a 24-volt battery with a 50 ah battery capacity allows energy storage of approximately 24v x 50ah = 1,200 wh.
②24v 100ah Lithium ion battery
Click on the picture for product details and its best price
Like the 24v 50Ah lithium ion battery, the 100Ah can store and deliver twice what the 50Ah does. For example, if the watt-load is still 25amps, 24v 100Ah lithium ion battery will last 4 hours. Higher Ah does not mean that the battery has a higher electric current. It simply means that the battery can run for longer durations after a single full charge.
Also, higher Ah certainly means that your battery will deliver more power and increase performance. Bottom line: you’d consider the application when buying a 24v lithium ion battery, it would be best if you can figure out the battery capacity you will need in your use. It is vital to buy a battery that is right for the job to prevent unnecessary repairs and power losses.
6.24v lithium ion battery application scenarios
It is essential to check out some of the application scenarios where a 24 lithium ion battery can be of benefit. Check them out:
①Power storage for home
A 24v 50Ah lithium ion battery is ideal for storing home’s energy using a solar power system. Having a household solar power system is beneficial when electricity prices are high.
Electrical tools, such as the electric drill, could use the 24v 50Ah lithium ion battery to store energy. The battery is ideal for electrical tools because it can store power for longer durations. On top of that, lithium ion batteries are super light, and that is just what you need when handling the electrical tools.
③Small electric vehicles
Modern electric vehicles require a 24v 100Ah lithium ion battery to power them. The battery can power small electric cars, golf carts, sweepers, etc. The 24v lithium ion battery is ideal for this use, as it can discharge quickly by producing more electric power when needed.
④Rv solar system
Recreation vehicles (RVs) are becoming popular today in the automotive industry. Technological advancements have ensured that the primary disadvantages that RVs face are eliminated. In the past, owning an RV was expensive as it ran only on fuel (oil). Fuel is expensive and not reusable, meaning it is not environmentally friendly. Its price also fluctuates too much without any warning. Like a household solar power system, the RV solar system can power all the devices you need to use in your RV. You get to charge the lithium RV battery for free using the sun during the day and enjoy the stored energy at night. How cool is that!

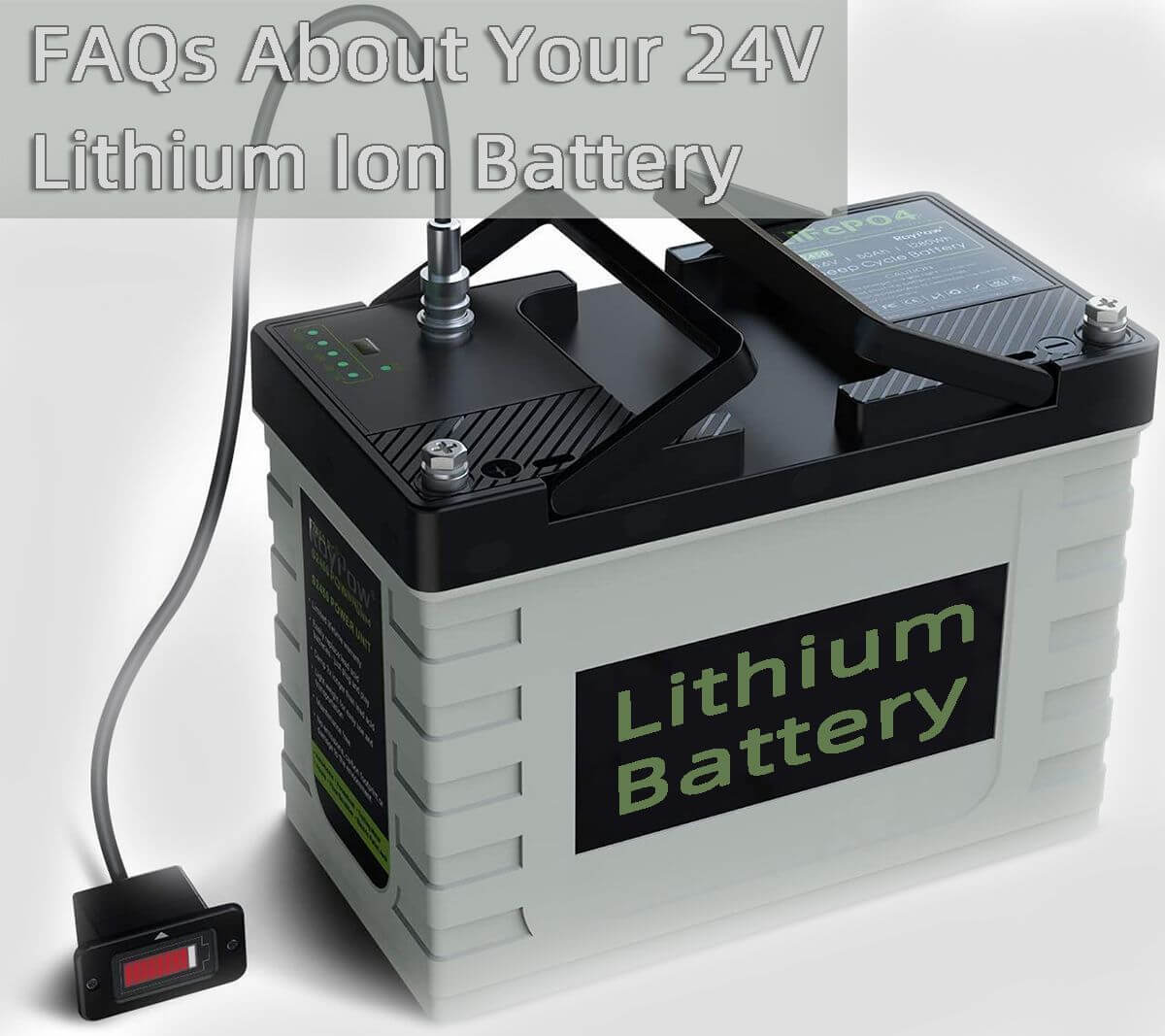

7.FAQS about 24v lithium ion battery
There are, of course, certain questions about the 24v lithium ion battery that you are most likely thinking to yourself. You are not alone.
This section of this article will help you answer the most common questions people ask concerning the 24v lithium ion battery.
Let’s dig right in!
①How long does a 24V lithium battery last?
There are two main factors that you need to consider to know how long 24v lithium ion battery will last. These factors are: The battery’s Ah; The watt-load the battery is supposed to power. If your 24v lithium ion battery has an Ah rating of 100Ah and needs to power a watt-load of 70 amps, the battery will last for around one hour and twenty-five minutes.
Here’s the deal: the higher the Ah rating on your battery, the longer it lasts. It would be best if you’d also consider the battery’s watt-load. It’ll help you select the ideal battery that will serve you effectively and efficiently after a single full charge.
②How long does it take to charge a 24V lithium battery?
It depends on the charger’s amp rating that you choose to use. Consider this scenario: if you have a 24v 50Ah lithium ion battery that requires charging and choose to use a 24v charger with a rating of 20 amps, it will take less than two and a half hours to charge your battery fully.
The charging duration is primarily determined by the type of charger you select. It should be noted that the chargers have the same voltage count, and the lithium-ion battery can only be charged with a special charger.
③How to prolong the lifespan of a 24v lithium ion battery?
Indeed, 24v lithium ion battery will eventually fail. You can, however, prevent this eventuality from taking place any sooner; consider doing the following things when handling your battery: avoid exposing your battery to extremely low or high temperatures, especially during charging. Exposing your battery to extreme temperatures degrades its internal components, shortening its lifespan. This prevention measure is ideal for batteries that do not have cooling or heating systems.
Avoid full charging or discharging your battery. It would be best to avoid fast charging and discharging of your battery if possible. Doing so also degrades the battery’s internal components rather quickly. Avoid exposing your 24v lithium ion battery to environments with high moisture content. Strictly adhere to the instructions of 24v lithium ion battery manufacturer on how to handle the battery.
④How do you tell if a battery is 12 or 24 volt?
You can tell if your battery is a 12v or a 24v by checking its voltage using a multimeter. The multimeter should display 12.0V~12.8V for the 12v battery. As for the 24v battery, the multimeter should have a reading of 24.0V~25.6V. Remember, the difference between a 12v and a 24v lithium ion battery is the number of LiFePO4 cells connected in a series to form a battery pack. The 12 volt lithium battery has four LiFePO4 cells, while the 24v battery has eight cells.
⑤Can I charge a 24V battery with a 12V charger?
No, you cannot charge a 24v battery using a 12v charger. You’ll need to use a charger with an equal voltage than the battery’s nominal voltage. It is possible to charge a 24v lithium ion battery using a 24v charger.The charger’s voltage needs to be equal to or higher than the nominal voltage of the battery.
8.What are the advantages of using a 24v lithium ion battery over other types of batteries?
Using a 24v lithium ion battery is more beneficial than using other types of batteries (lead-acid and nickel-based). Here’s why: lithium-ion batteries are lightweight compared to other types of batteries. A 24v 100Ah lithium ion battery weighs 23kgs, while a 12v 100Ah lead-acid battery weighs around 33kgs.The rate of self-discharge is lower compared to other types of batteries. A 24v lithium ion battery has more charging and discharging cycles than other battery types.
Lithium ion batteries have no memory effect – they do not lose their voltage after charging due to partial loss of electric charge. You do not have to 100% discharge your 24v lithium ion battery so that you can charge it again. Most lithium ion batteries have a protection circuit board that helps prevent overcharging and over-discharging. This is a feature that other battery types do not have.
9.How to select the right 24V lithium ion batteries for your application(50ah, 100ah)?
Selecting the ideal 24v lithium ion battery for use requires you to understand two key factors:The watt-load your battery is expected to power and the battery’s Ah rating. Earlier in this article, you learned how to calculate how long your battery will last by dividing the battery’s Ah rating with the watt-load (in amps). If you have a 24v 50Ah lithium ion battery and a watt-load of 50 amps, the battery will last for one hour. If you have a 24v 100Ah lithium ion battery, and the watt-load remains the same, your battery will last for 2 hours. Remember, the higher the Ah rating, the longer your battery lasts and better performance.
10.How to correctly charge 24V lithium ion battery to prolong battery life?
Charging your 24v lithium ion battery correctly is one of the critical factors that prolong your battery’s lifespan.Charging the battery will require you to use the correct lithium ion battery charger with a voltage of at least 24v. The charging needs to be done away from extreme temperatures.
Most lithium ion batteries have a protection circuit board that prevents overcharging. It, therefore, means that you do not have to worry about the battery overcharging.However, leaving the charger unplugged for a long time after the battery has been fully charged is still harmful to lithium batteries, consider keeping an eye on it so that you can remove it from the charger after it charges fully.
In addition, it is also necessary to prevent high current charging. Generally, it should not exceed 1C and 0.2c is recommended. Otherwise, excessive current will damage the battery life. You can even calculate how long it’ll take to charge the battery by dividing the battery’s Ah rating by the charger’s amps. So assuming your battery is a 24v 100Ah lithium ion battery and you have a 24v 20 amps charger, the battery’s charging duration will be 100Ah/20amps = 5 hours.
11.How to pick up a 24v lithium ion battery manufacturer?
Selecting a technical 24v lithium ion battery manufacturer is a challenging process because there are hundreds of lithium ion battery manufacturers today. However, that should not be an obstacle that prevents you from acquiring your desired 24v lithium ion battery.Apart from personal preferences, you’ll need to check out how credible a 24v lithium ion battery manufacturer is by reading online reviews on the manufacturer’s products.
Customer reviews are vital as customers tend to be honest since the 24v lithium ion battery manufacturer is not paying them to write these reviews. Many positive reviews from previous customers mean that the 24v lithium ion battery manufacturer is credible. You may find a few negative reviews, which is normal.
12.The best 24v lithium ion battery manufacturer
Tycorun Energy is a globally leading 24v lithium ion battery manufacturer and supplier. We manufacture quality LiFePO4 batteries that have different voltages and Ah ratings, including 12v 100ah lithium ion battery and so on. These batteries can be used safely in an array of applications: computer UPS, portable power bank, home solar power storage and RV solar power storage, etc.
Visit our website to view our lithium ion products, or reach out to us right now to place your order!
