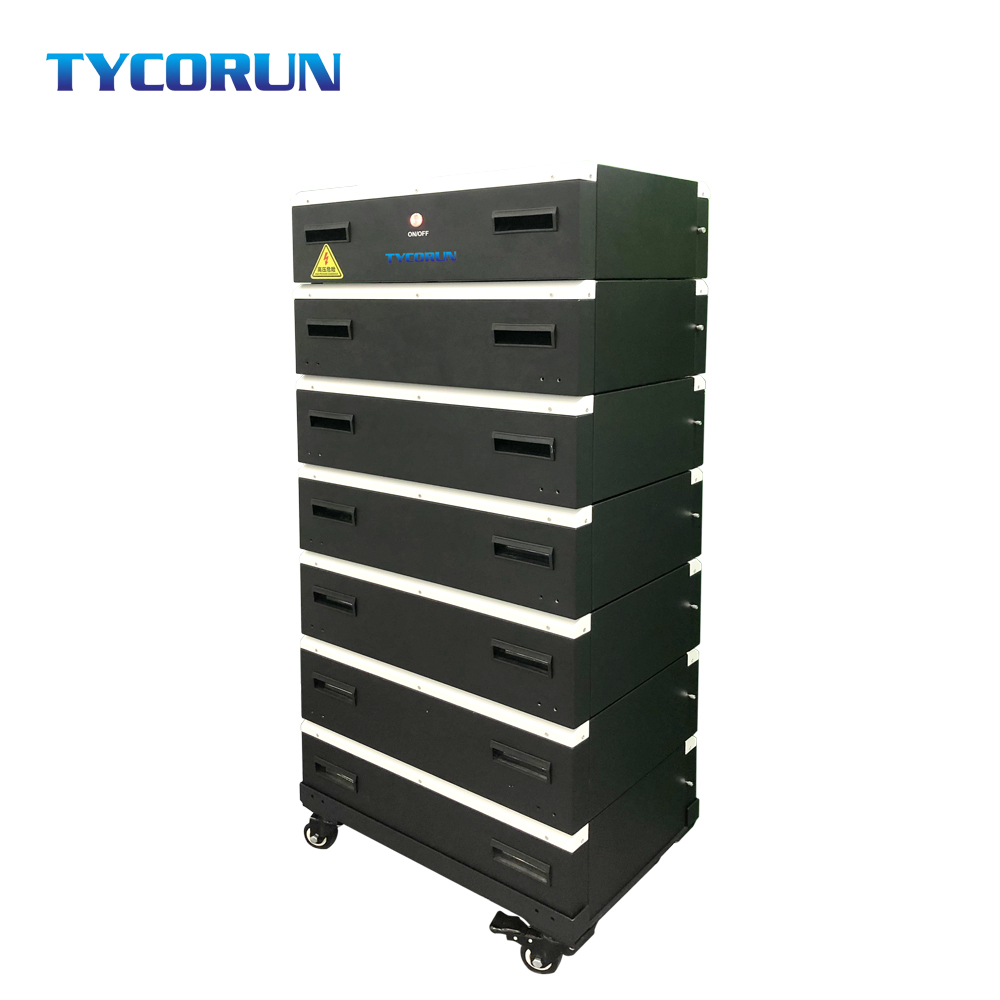

TYCORUN ENERGY high voltage lithium battery 30kwh

TYCORUN ENERGY lithium ion battery high voltage 30kwh

TYCORUN ENERGY 307.2V lithium ion battery high voltage is made of 96 cells connected in series, and usable capacity is 35kWh. This lithium ion battery high voltage can operate continuously and reliably for a long time, it is equipped with BMS system protection function and control system, which can prevent multiple protection measures such as overcurrent, overtemperature, overvoltage, and short circuit. The protection level is IP67, which is safer and more reliable to use. The lithium ion battery high voltage product has a high-precision electric meter inside, which can prevent backflow and provide load power monitoring. Lithium ion battery high voltage can stack 3 to 7 battery modules according to the actual needs, the usable capacity is from 15kWh to 35kWh.

Description

Model THV-BOX30KW
Nominal Voltage 307.2V(96series)
Capacity 100Ah
Energy 30.72KWh
Internal Resistance ≤150mΩ
Cycle Life [email protected]%DOD,25℃,0.5C ≥[email protected]%DOD,40℃,0.5C
Design Life ≥10 years
Charge Cut-off Voltage 340V±0.5V
Max. Continuous Work Current 100A
Discharge Cut-off Voltage 270V±0.5V
Charge Temperature 0℃~60℃
Discharge Temperature -20℃~60℃
Storage Temperature -40℃~55℃ @ 60%±25% relative humidity
Dimensions 1300*415*590 mm
Weight Approx:360kg
Protocol (optional) RS232-PC,RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter
Certification UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

FAQ

1.What are the advantages of the lithium ion battery high voltage ?

Higher conversion efficiency, increased independence from the grid, and greater flexibility,Lower cost and larger system. Use high-efficiency and safe lithium iron phosphate batteries for long battery life.



2.What is the capacity and voltage range of this lithium ion battery high voltage?

Capacity from 15.36kWh to 35.84kWh and voltage from 153.6V to 358.4V.



3.What are the configurations of this lithium ion battery high voltage system?

Flexible configuration, optional photovoltaic/mains charging mode, support Wi-Fi, GPRS wireless monitoring methods.



4.Can your company provide OEM service?

To welcome world cooperation, we accept OEM with your logo design.



5.How about the protection function of this lithium ion battery high voltage?

Perfect BMS protection function and control system, multiple protection designs in lithium ion battery high voltage such as overcurrent, overvoltage and insulation.



6.What kind of battery does the lithium ion battery high voltage use?

We use lithium iron phosphate batteries, which are rechargeable, very durable, and very safe.



7.How to choose a suitable lithium ion battery high voltage manufacturer?



Product quality

Product quality is a very core key element of a product. When you are ready to look for lithium ion battery high voltage manufacturers, you can first ask them which world-renowned brands they cooperate with. Because well-known brands usually give priority to qualified large factories to cooperate, it is very difficult for small factories without qualifications to cooperate with well-known brands. This is very important.



Factory qualification

There is a fact that everyone should be very clear, there are a lot of lithium ion battery high voltage manufacturers in China. Qualification is a very important factor in evaluating a lithium ion battery high voltage manufacturer. If you plan to cooperate with this factory, it is necessary for you to ask the factory to issue relevant qualification certificates.



Product competitiveness

An excellent lithium ion battery high voltage manufacturing plant often has strong product competitiveness. Therefore, if you need to find a reliable partner, you need to find a lithium ion battery high voltage factory that can produce batteries of different capacities, different voltages and different uses. Such a factory has strong production and R&D capabilities. It can immediately give corresponding product solutions according to various needs of customers.



Technology R & D

If a lithium ion battery high voltage manufacturer does not have R&D capabilities, he will lose market competitiveness. Because the market is highly competitive and changes every day. If this lithium ion battery high voltage manufacturer has independent research and development capabilities, and can often update new products and new technologies, it can show that this lithium ion battery high voltage manufacturer is strong. We all know that if a factory wants to do its own research and development, it needs to invest millions of dollars. It is impossible for a small factory without strength to have this budget.



Raw materials

Raw materials are the most important part of lithium ion battery high voltage, and the quality of raw materials largely determines the quality of products. If this lithium ion battery high voltage factory can provide pictures, videos and specifications of production raw materials, it means that they can be assured of the materials they use. To produce high-quality high voltage batteries, good raw materials must be used.



Factory certification

As a regular lithium ion battery high voltage factory, it needs to pass a series of industry certifications to ensure that every process of production is safe. Therefore, factory certification is a necessary condition for you to choose a manufacturer.



Lithium ion battery high voltage manufacturer reputation

When you can see this lithium ion battery high voltage manufacturer on the Internet or at exhibitions, it means that the lithium ion battery high voltage manufacturer has certain strength. It has real factories and strong marketing capabilities. Especially for lithium ion battery high voltage manufacturers in China, if they can be found on Alibaba and international websites, it means that this lithium ion battery high voltage manufacturer is more real and effective, because to do these platforms well, the investment is also very large. . Ordinary factories do not have this capability.
