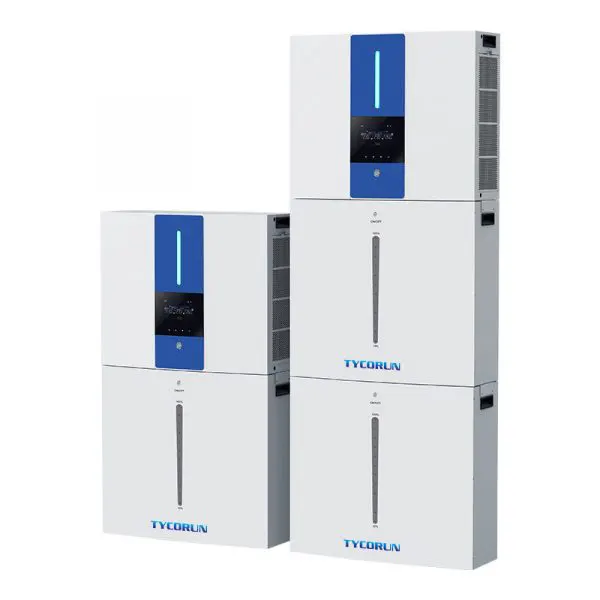

TYCORUN ENERGY 10KW 20KW integrated energy storage

TYCORUN ENERGY 10KW 20KW 48V integrated energy storage system

TYCORUN ENERGY 10KW 20KW solar energy system is an integrated energy storage system, equipped with charger/inverter/solar energy system, which is very convenient and safe to use. TYCORUN ENERGY has passed MSDS/ROSH/VDE/CE/UN38.3/IEC certification.The built-in battery uses lithium iron phosphate battery, DOD 80% battery life can be up to 4000 times. It is an energy storage unit that can meet the daily electricity demand. It can be used on-grid or off-grid to meet the daily electricity needs of users and provide you with uninterrupted power support.Ideal for energy storage in small factories and home storage. The integrated energy storage system design is very convenient for transportation and installation, and it does not take up too much space.

Description

Model T-EES8810 T-EES8820
Inverter
Maximum PV Input Power 8000 W(4000*2)
Rated Output Power 8000 W
Surge Power 16000W
 Maximum Charging Power 6000 W(Grid)7500W(PV)
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
 MPP Voltage Range 90 VDC ~ 450 VDC
 Number of MPP Trackers 2
GRID OUTPUT (AC)
AC Voltage Regulation(Batt.mode) 230 ±5%
No Load Power Consumption ≤75W
Frequency Range 50/60HZ(Auto sensing)
European Effificiency @ Vnominal 93%
Transfer Time 15ms(For Personal Computers),20ms(For Home Appliances)
AC INPUT
Acceptable Input Voltage Range 170-280 VAC / 90-280 VAC(Can be set)
Grid type L+N+PE
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 208 / 220 / 230 / 240 VAC
Effificiency (DC to AC) 93%
BATTERY Technical Specifications
Nominal DC Voltage 51.2 VDC
Battery Capacity 200Ah 400Ah
Maximum operating current 150 A 200 A
Store energy 10.24KWH 20.48KWH
Full Charge Voltage (FC) 56 V
Full Discharge Voltage (FD) 45 v
Protection BMS, Breaker,Inverter
Inner Resistance < 20 m Ohm
Cycle Life ≥4000Cycles/80%[email protected]
System parameters
Dimension, D x W x H (mm) 214*621*1205 214*621*1755
Net Weight (kg) Approx:140kg Approx235kg
Operating temperature/humidity range 0-55℃/0-80%RH
Protocol WIFI and RS232
Certification CE-EMC
Output waveform Pure sine wave
