high voltage battery systems product

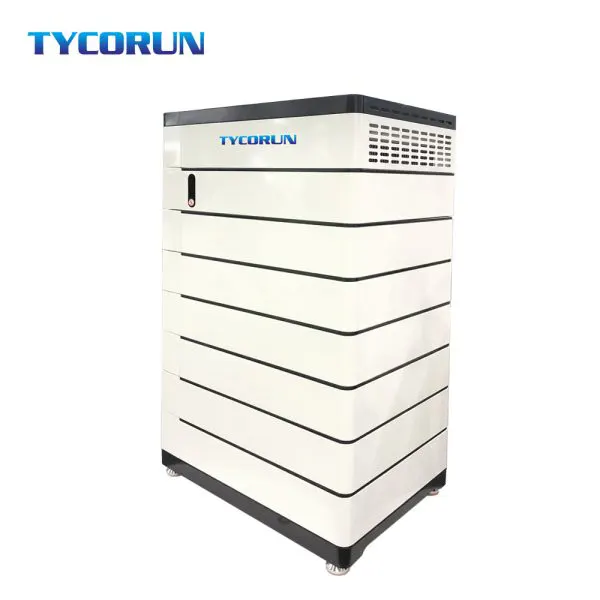

TYCORUN ENERGY 25kw high voltage battery systems

TYCORUN ENERGY 25kw high voltage battery systems equipped with inverters are used as safe, reliable and clean power supply systems. They not only have BMS system protection functions and control systems, but also can prevent multiple protection measures such as short circuit, overcurrent, and overtemperature. High voltage battery systems are safer and more reliable to use, with built-in high-precision electricity meters to prevent backflow and provide load power monitoring. The protection level of TYCORUN ENERGY high voltage battery systems are IP67 protection level, which can use Wi-Fi and GPRS wireless monitoring methods, It also provides a variety of working modes to meet your diverse needs, supports uninterrupted switching between off-grid and grid-connected, and can be charged by photovoltaic or mains.

Description

Nominal Voltage 358.4V(112S)
Capacity 100Ah
Energy 35.84KWh
Cycle Life ≥5000cycles@80%DOD,25℃,0.5C
Charge Cut-off Voltage 408.8V±0.5V
Max. Continuous Work Current 100A
Discharge Cut-off Voltage 313.6V±0.5V
Charge Temperature 0℃~55℃ (Under 0℃ extra heating mechanism)
Discharge Temperature -20℃~60℃ (Under 0℃work with reduced capacity)
Storage Temperature -20℃~40℃ @ ≤75% relative humidity
Dimensions (L*W*H) 775.5*547*1534 mm
Weight Approx: 325kg
Degree of Protection (IP) IP 67

high voltage battery systems

FAQ

1.Can I have a sample order of high voltage battery systems?

Yes, we welcome sample order to test and check quality.

2. Do you have any MOQ limit?

Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

3.How to proceed with an order?

Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.

4. What about the lead time?

Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

5.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

6.Is it OK to print my logo on the high voltage battery system products?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

7. How about cycles life and warranty of TYCORUN ENERGY high voltage battery systems?
All of batteries are 5000 cycles life beyond 80% DOD. with 2 years warranty.
