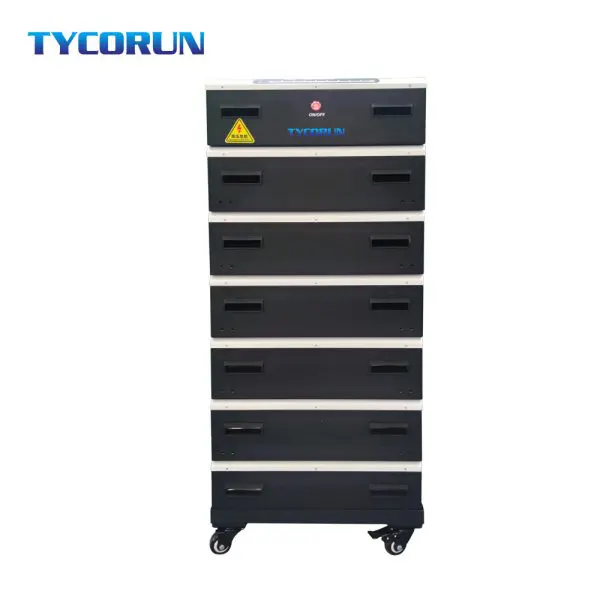

TYCORUN ENERGY lithium battery high voltage 25kwh

This 25kwh TYCORUN ENERGY lithium battery high voltage consists of 80 cells connected in series to form a 256v high voltage battery. The lithium battery high voltage battery has a high-precision MPPT control inside, which can maximize the use of solar energy, thereby increasing the photovoltaic power generation. This high voltage battery supports uninterrupted switching between off-grid and grid-connected, supports Wi-Fi and GPRS wireless monitoring methods, real-time understanding of battery status, can run continuously and reliably for a long time, and provide uninterrupted power. TYCORUN ENERGY lithium battery high voltage with perfect BMS system protection function and control system, multiple protection measures are safer and more reliable to use.

Description

Model THV-BOX25KW
Nominal Voltage 256V(80series)
Capacity 100Ah
Energy 25.6KWh
Internal Resistance ≤120mΩ
Cycle Life ≥5000cycles@80%DOD,25℃,0.5C ≥4000cycles@80%DOD,40℃,0.5C
Design Life ≥10 years
Charge Cut-off Voltage 284V±0.5V
Max. Continuous Work Current 100A
Discharge Cut-off Voltage 225V±0.5V
Charge Temperature 0℃~60℃
Discharge Temperature -20℃~60℃
Storage Temperature -40℃~55℃ @ 60%±25% relative humidity
Dimensions 1120*415*590 mm
Weight Approx:310kg
Protocol (optional) RS232-PC,RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter
Certification UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

FAQ

1.What are the advantages of the lithium battery high voltage ?

Higher conversion efficiency, increased independence from the grid, and greater flexibility,Lower cost and larger system



2.What is the capacity and voltage range of this lithium battery high voltage?

Capacity from 15.36kWh to 35.84kWh and voltage from 153.6V to 358.4V.



3.What are the configurations of this lithium battery high voltage system?

Flexible configuration, optional photovoltaic/mains charging mode, support Wi-Fi, GPRS wireless monitoring methods.



4.How about the protection function of this lithium battery high voltage?

Perfect BMS protection function and control system, multiple protection designs in lithium battery high voltage such as overcurrent, overvoltage and insulation.



5.Can your company provide OEM service?

To welcome world cooperation, we accept OEM with your logo design.



6.What kind of battery does the lithium battery high voltage use?

We use lithium iron phosphate batteries, which are rechargeable, very durable, and very safe.



7.How to choose a suitable lithium battery high voltage manufacturer?



Product quality

Product quality is a very core key element of a product. When you are ready to look for lithium battery high voltage manufacturers, you can first ask them which world-renowned brands they cooperate with. Because well-known brands usually give priority to qualified large factories to cooperate, it is very difficult for small factories without qualifications to cooperate with well-known brands. This is very important.



Factory qualification

There is a fact that everyone should be very clear, there are a lot of lithium battery high voltage manufacturers in China. Qualification is a very important factor in evaluating a lithium battery high voltage manufacturer. If you plan to cooperate with this factory, it is necessary for you to ask the factory to issue relevant qualification certificates.



Product competitiveness

An excellent lithium battery high voltage manufacturing plant often has strong product competitiveness. Therefore, if you need to find a reliable partner, you need to find a lithium battery high voltage factory that can produce batteries of different capacities, different voltages and different uses. Such a factory has strong production and R&D capabilities. It can immediately give corresponding product solutions according to various needs of customers.



Technology R & D

If a lithium battery high voltage manufacturer does not have R&D capabilities, he will lose market competitiveness. Because the market is highly competitive and changes every day. If this lithium battery high voltage manufacturer has independent research and development capabilities, and can often update new products and new technologies, it can show that this lithium battery high voltage manufacturer is strong. We all know that if a factory wants to do its own research and development, it needs to invest millions of dollars. It is impossible for a small factory without strength to have this budget.



Raw materials

Raw materials are the most important part of lithium battery high voltage, and the quality of raw materials largely determines the quality of products. If this lithium battery high voltage factory can provide pictures, videos and specifications of production raw materials, it means that they can be assured of the materials they use. To produce high-quality high voltage batteries, good raw materials must be used.



Factory certification

As a regular lithium battery high voltage factory, it needs to pass a series of industry certifications to ensure that every process of production is safe. Therefore, factory certification is a necessary condition for you to choose a manufacturer.



lithium battery high voltage manufacturer reputation

When you can see this lithium battery high voltage manufacturer on the Internet or at exhibitions, it means that the lithium battery high voltage manufacturer has certain strength. It has real factories and strong marketing capabilities. Especially for lithium battery high voltage manufacturers in China, if they can be found on Alibaba and international websites, it means that this lithium battery high voltage manufacturer is more real and effective, because to do these platforms well, the investment is also very large. . Ordinary factories do not have this capability.
