wall-rack-mount-lifepo4-battery

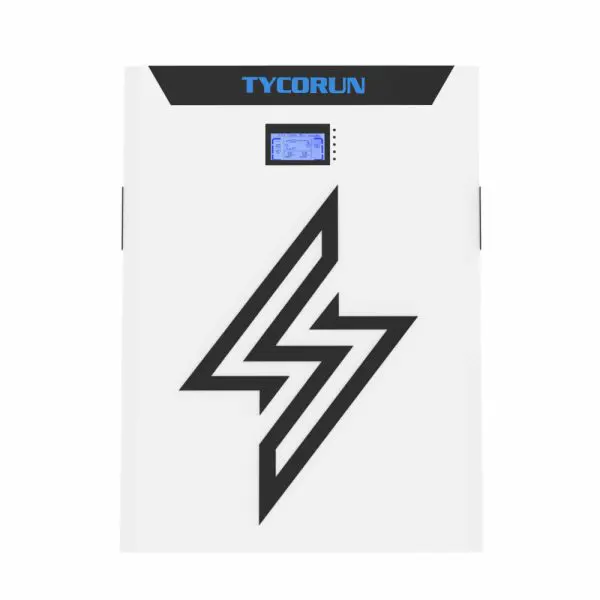

51.2v 100ah wall-rack mount lifepo4 battery 3U

TYCORUN ENERGY 3U 51.2V 100AH wall-rack mount lifepo4 battery all-in-one can be used as either wall-mounted energy storage or rack mount lifepo4 battery. It is mainly used for home energy storage, which can be connected to solar and wind systems. With 16 lithium iron phosphate cells in series, 51.2v wall-rack mount lifepo4 battery is one of the lithium-ion batteries with the highest safety performance and is very suitable for family use. At the same time, the rack mount lifepo4 battery has low self-discharge rate, also the energy density is much higher than the traditional lead-acid battery, and the volume is small with cycle life up to 4,000 times. It is equipped with a special intelligent BMS, which can effectively prevent overheating and over-discharge, overcharge, short circuit, etc. There is also a display screen in rack mount lifepo4 battery that displays battery status information in real time.

Features & advantages of TYCORUN ENERGY 51.2V wall-rack mount lifepo4 battery :

1. General model for rack and wall mount
2. No wire harness (nickel sheet to replace the acquisition line)
3. Support hybrid parallel machine (old and new batteries can be used at the same time)
4. No need to dial, one key can be connected (battery can automatically identify the address)
5. Using aerosol (can effectively fire)
6. Equipped with a variety of inverter protocols (support the selection of inverter communication protocols on mobile phone bluetooth app)

Description

51.2v 100ah wall-rack mount lifepo4 battery specification
Item General parameter
Combination method 16S
Rated capacity Typical 100Ah
Minimum 98Ah
Factory voltage 51.2V-53V
Voltage at end of discharge <=43.2V
Charging voltage 57V
Internal impedance ≤120mΩ
Max charging current(icm) 100A
Limited  charging voltage(ucl) 57.6V
Max discharging current 100A
Discharge cut-off voltage(udo) 43.2V
Operation temperature range Charge:0~55℃
Limited charge voltage Discharge: -20~55℃
Storage temperature range -20℃~25℃
Single module size/weight 600*442*133mm /48Kg

51.2v rack mount lifepo4 battery

Company Profile

lithium ion battery manufacturing SGS
lithium ion battery manufacturing SGS
lithium ion battery factory SGS
lithium ion battery factory SGS
TYCORUN BATTERY SGS
TYCORUN BATTERY SGS

DOCS

FAQ

Q1. Can I have a sample wall – rack mount lifepo4 battery order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the rack mount lifepo4 battery and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the wall – rack mount lifepo4 battery product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7. How about cycles life and warranty of your battery?
All of batteries are 2000 cycles life beyond 80% DOD. with 2 years warranty.
