Description

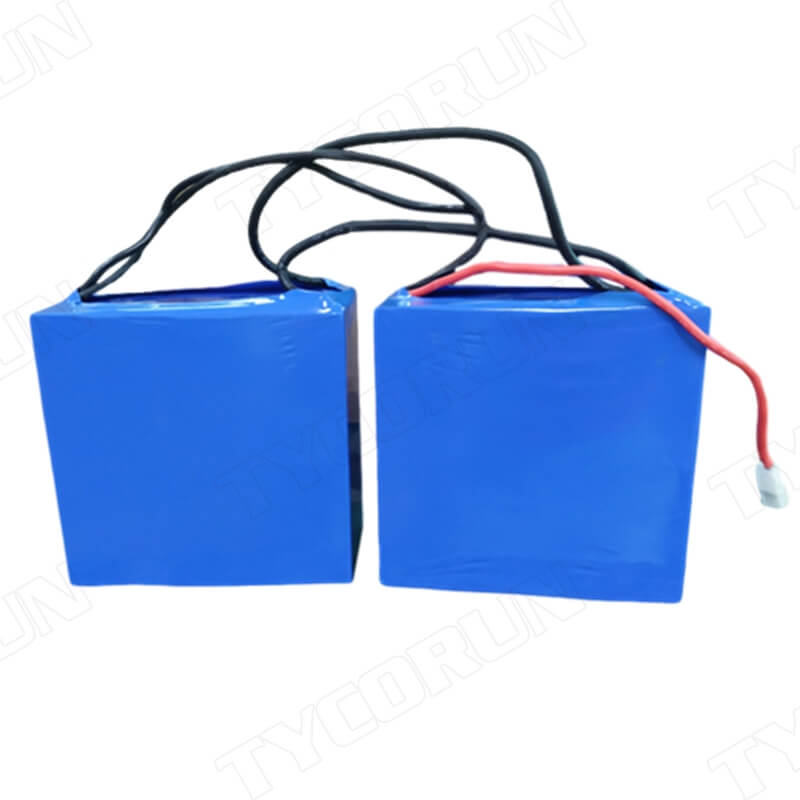

BASIC REQUIREMENT OF 25.2 V LITHIUM ION BATTERY FOR HOVERBOARD | |
Item | 25.2V 33.8Ah |
Series | 7 |
Parallel | 13 |
Rated voltage | 25.2V |
Nominal capacity | 33800mAh |
Size | 152*150*73 |
Internal Resistance | ≤200mΩ |
Weight | 4200g |
Rated Charge Current | 6.76A |
Max Charge Current | Max 10A |
Rated Discharge Current | 6.76A |
Max Discharge Current | Max 20A |
Current for Overcurrent Protection | 90-120A |
Limited charge voltage | 29.4V |
Discharge Cut-Off Voltage | 18.25V |
Cycle Life | 0.2C charge 0.2C discharge conditions, 300 times ≥ 70% initial capacity |
Charging/Discharge Temperature | 0~+40℃/-20~+60℃ |
Storage Temperature | -10℃~+35℃ better not longer than 6 months |
Temperature Protection | 75℃ |
Product Certification | ●Gb31241-2014(CQC)●UL2054 ●un38.3 ●KC ●MSDS ●RoHS ●Halogenfree ●CE ●UL60950 ●RCM ●PSE ●BIS ●REACH ●Parts certification ●Battery directive ●Other |
