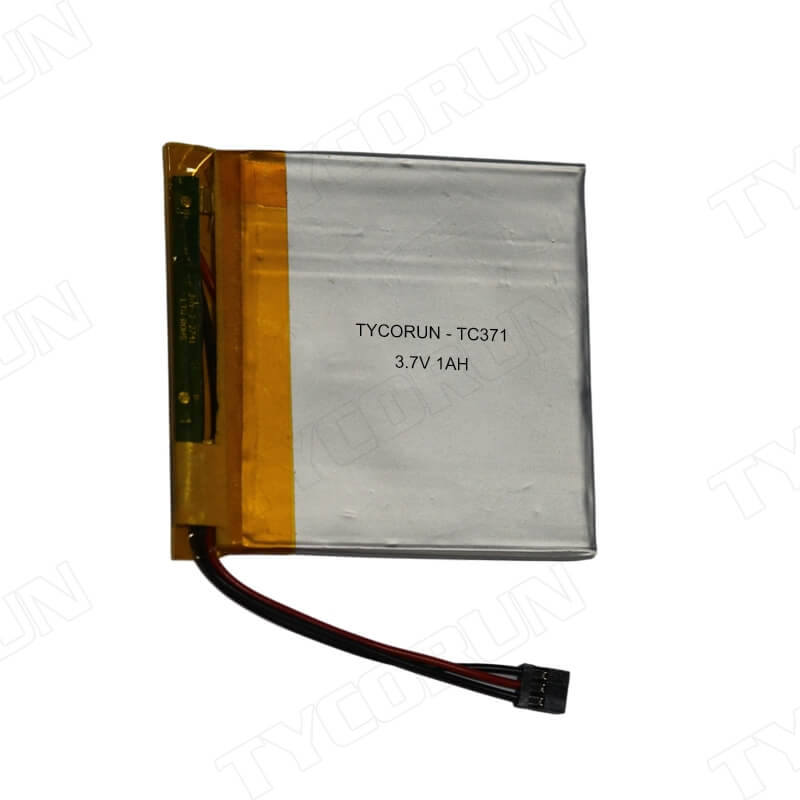

TC371 3.7V 1AH 3.7v 1ah li ion pouch cell

3.7v 1ah li ion pouch cell

3.7v 1ah li ion pouch cell conforms to the values of energy saving, emission reduction, low carbon economy, and green environmental protection. It has a BMS with overcharge and overdischarge protection and short circuit protection. Also the 3.7v 1ah li ion pouch cell has UN38.3, CE, UL and other certification certificates, which ensures that this is a safe, low-maintenance, high-performance 3.7v 1ah li ion pouch cell battery, as well as IP65 dust-proof and waterproof, not afraid of rain and sand. 3.7v 1ah li ion pouch cells are half the weight of lead-acid batteries. Is a relatively lightweight lithium battery what you need for your application? Come and consult Tycorun Energy, the most experienced lithium-ion battery manufacturer, we will provide you the best 3.7v 1ah li ion pouch cell.


3.7v 1ah li ion pouch cell
Item 3.7V 1Ah
Series 1
Parallel 1
Rated voltage 3.7V
Nominal capacity 1000mAh
Size 70*63*2.9
Internal Resistance ≤170mΩ
Weight 20g
Rated Charge Current 0.2A
Max Charge Current Max 1A
Rated Discharge Current 0.2A
Max Discharge Current Max 1A
Current for Overcurrent Protection 2-6A
Limited charge voltage 4.2V
Discharge Cut-Off Voltage 3V
Cycle Life 0.2C charge 0.2C discharge conditions, 300 times ≥ 70% initial capacity
Charging/Discharge Temperature 0~+40℃/-10~+60℃
Storage Temperature -20℃~+35℃ better not longer than 6-month
Temperature Protection no
Certification GB31241-2014(CQC),UL2054,un38.3,KC,MSDS,RoHS,Halogenfree,CE,UL60950,RCM,PSE,BIS,REACH,Parts certification, Battery directive, Other

Company Profile

lithium ion battery manufacturing SGS
lithium ion battery manufacturing SGS
lithium ion battery factory SGS
lithium ion battery factory SGS


Q1. Can I have a sample 3.7v 1ah li ion pouch cell order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the 3.7v 1ah li ion pouch cells and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the li ion pouch cell?
A. Yes. Please inform us formally before our production of the 3.7v 1ah li ion pouch cell and confirm the design firstly based on our sample.

Q7. How about cycles life and warranty of your battery?
All of batteries are 2000 cycles life beyond 80% DOD. with 2 years warranty.
