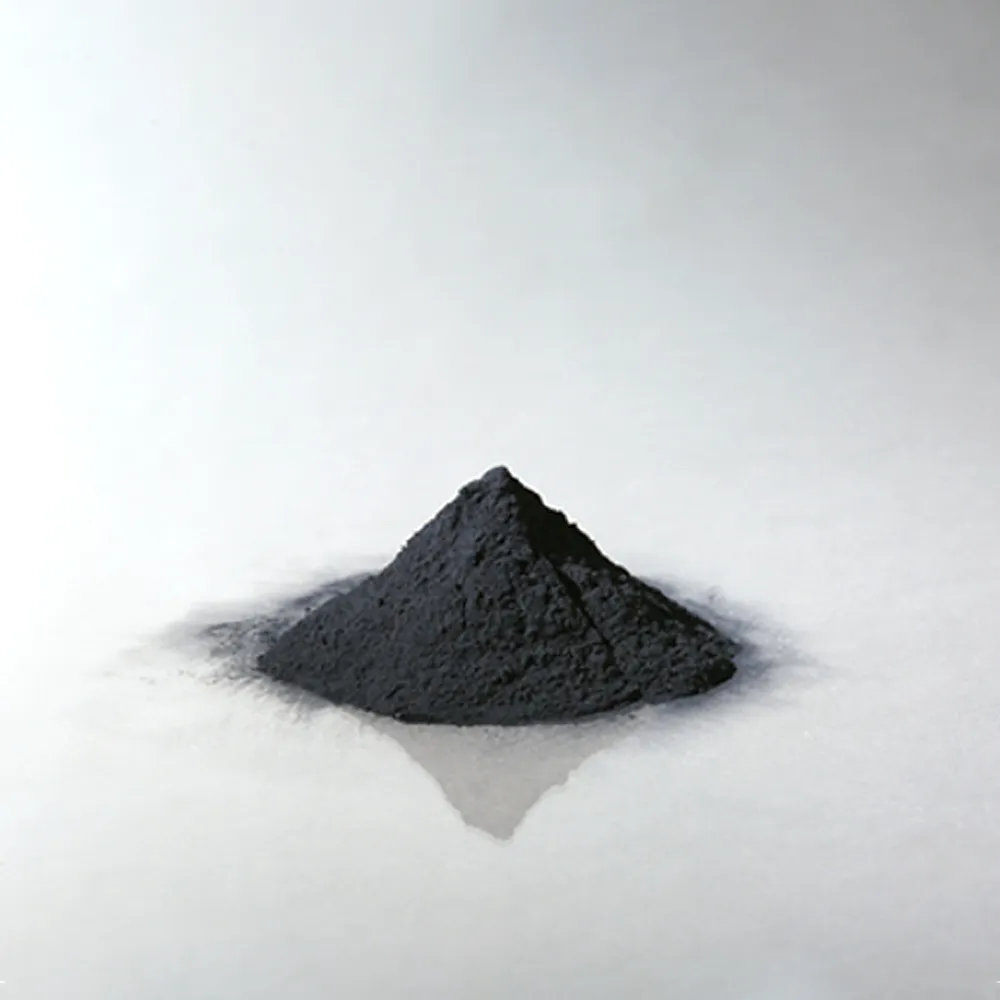

NCM523-1

NCM523 single crystal – lithium ion battery nickel cobalt manganese ternary material

ZEC’s NCM523 single crystal ZH5000BDH is a highly advanced lithium ion battery material.

● Terminal application scenarios:

It is an ideal choice for a wide range of applications, including mid to low-end, mid to high-end electric vehicles, 3C products, and energy storage.

● Product advantages:

ZEC’s NCM523 is a material with a single crystal structure. The single crystal structure has better structural stability and thus higher cycle life. And in terms of safety performance, ternary materials with a single crystal structure also have obvious advantages. There is no grain boundary inside the single crystal, which can effectively improve battery cycle performance and slow down capacity fading.

Therefore, ZEC’s NCM523 has the advantages of long cycle and high safety.

Categories , , Tag:
Get A Free Quote Now

Physicochemical parameter

Physical

 ZH5000BDH
Ni/Co/Mn (molar ratio)

50/20  /30

 LPS

 D10 (μm) 2.2

D50 (μm)

 4.2
D90 (μm)

7.8
D99 (μm)

10.7

pH

 / 11.27
  BET m2/g

0.8

TD

 g/cm3 2.02
 Li+ (%)

0.023

Electrical performance

Product Name

ZH5000BDH

 CR 2430

  4.2V 0.1C 1st efficiency(%) 88.8%

Disc. Cap.(mAh/g)

160.3
4.2V 1.0C Disc. Cap.

145.5

454261

  Disc. Cap.(mAh/g) 4.2V 0.2C 166.9

4.2V 0.5C

160.9
4.2V 1.0C

158.7

4.2V 2.0C/0.2C Ratio

 95.1%
 Disc. Volt. 4.2V 0.2C

3.688

4.2V 0.5C

 3.652
4.2V 1.0C

3.593



Product Name

ZH5000BDH

454261

 Disc. Cap.(mAh/g)

 4.3V 0.2C 177.3
4.3V 0.5C

173.4

4.3V 1.0C

 168.3
Disc. Volt. 4.3V 0.2C

3.718

4.3V 0.5C

 3.680
4.3V 1.0C

3.625

Disc. Cap.(mAh/g)

4.35V 0.2C

 184.3
4.35V 0.5C

179.1
4.35V 1.0C

175.8

Disc. Volt.

 4.35V 0.2C 3.731
4.35V 0.5C

3.694

4.35V 1.0C

 3.634
Disc. Cap.(mAh/g) 4.4V 0.2C

188.1

4.4V 0.5C

 181.4
4.4V 1.0C

179.3

Disc. Volt.

 4.4V 0.2C 3.740
4.4V 0.5C

3.703

4.4V 1.0C

3.641



Product Name

 ZH5000BDH
RT Cycle @ 200 cls(4.2V 1C )

95.2%

45℃Cycle @ 100 cls(4.2V 1C)

 97.2%
45℃Cycle @ 100 cls(4.4V 1C)

94.4%

454261

 DCR Charge 3.35V 126
3.5V

126

3.85V

 72
4.1V

69

4.3V

 71
DCR Discharge 4.3V

89

4.1V

 79
3.85V

74

3.5V

 69
3.35V

79

NCM523 specific data

Number of cycles capacity retention curve

4.2v-rt-1c-1c-cycle

4.2v-45℃-1c-1c-cycle

DRC-comparison-after-4.4V-45°-200-cycles

Specification

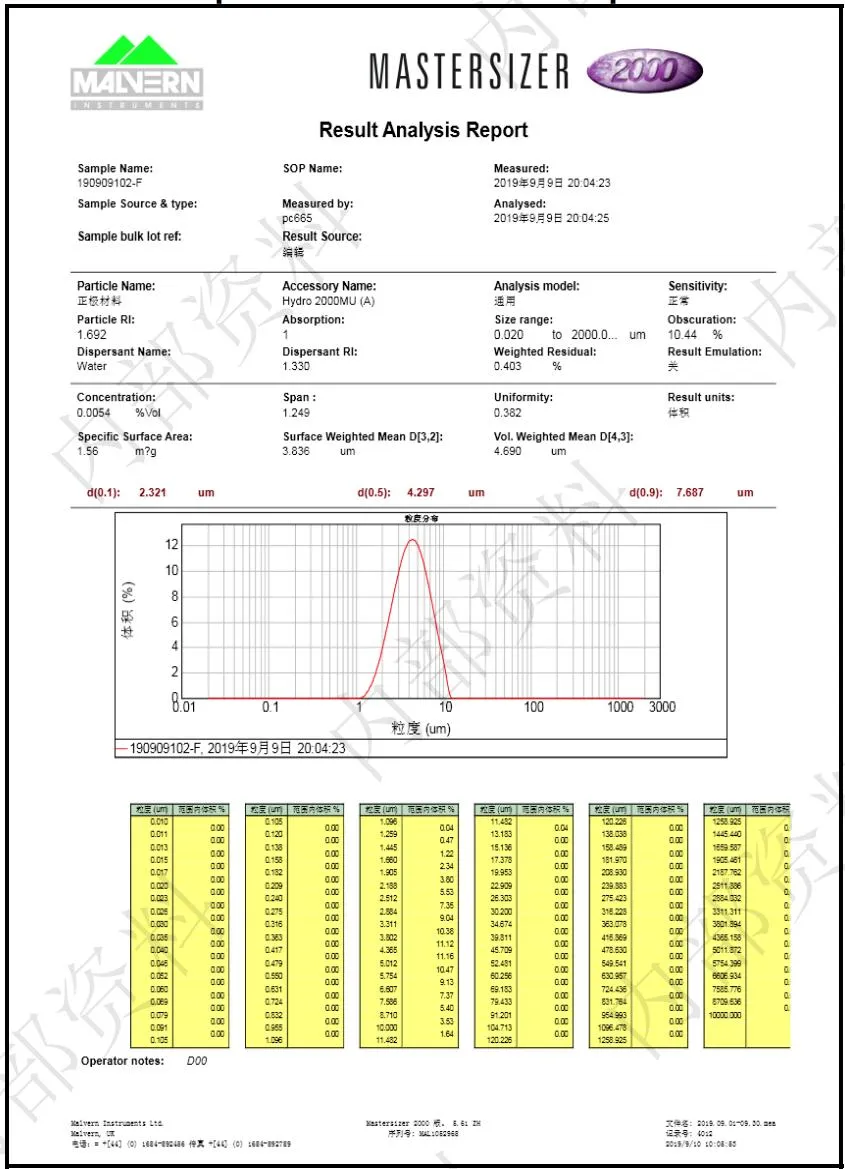

Particle-size-analysis-report

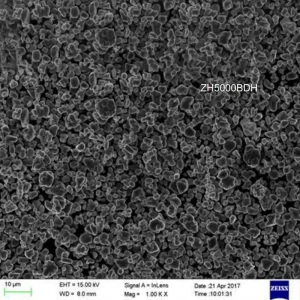

NCM523 Pictures

NCM523-2NCM523-3NCM523-4NCM523-5NCM523-6NCM523-7



FAQ

Q1. Can I have a NCM523 sample order?
A. Yes, we welcome NCM523 sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the NCM523 goods and how long does it take to arrive?
A. We usually ship NCM523 by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an NCM523 order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the NCM523 production.

Q6. Is it OK to print my logo on the NCM523 product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7. How about cycles life and warranty of your battery?
All of batteries are 2000 cycles life beyond 80% DOD. with 2 years warranty.
