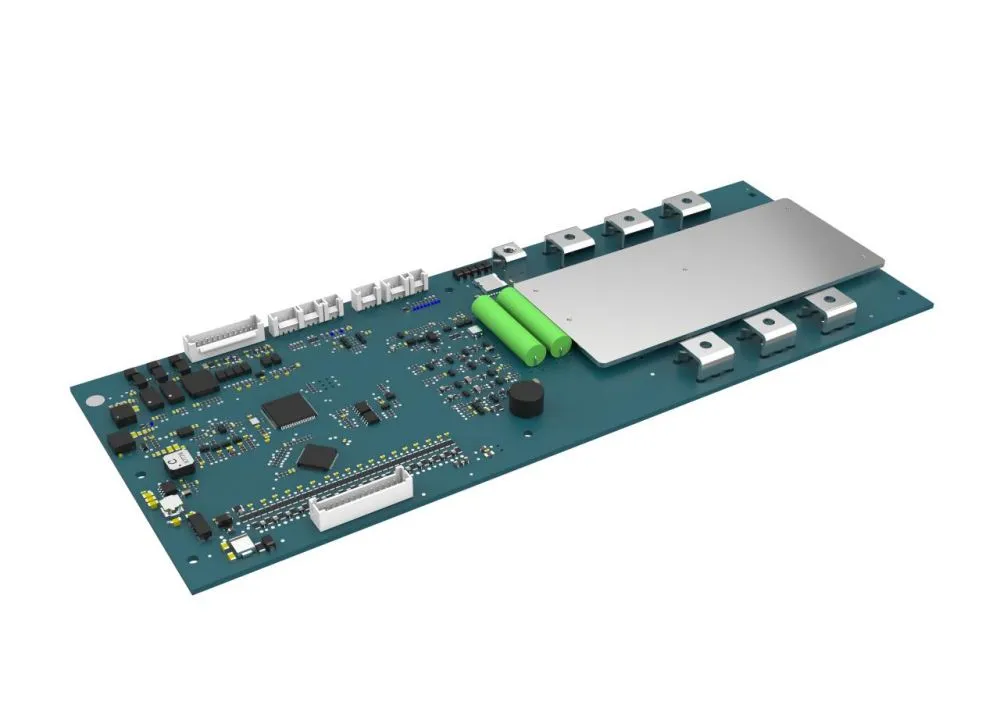

TYCORUN ENERGY lithium battery bms

Lithium battery BMS 100A 200A

TYCORUN ENERGY lithium battery BMS products, for lithium battery energy storage applications, adopt an integrated design that integrates data acquisition, data management, fault protection, and communication interaction functions. This battery management system can be widely used in household and commercial energy storage products, and can also be used in base station energy storage products;

● Support remote monitoring and fault maintenance
● Support mixed parallel operation of old and new batteries
● Support dynamic identification and automatic paralleling
● Support multi-machine one-key on/off
● Support dynamic SOP
● Support CAN and RS485 communication
● Support global mainstream brand inverter protocol switch option

Description

Product model XLH-EVP-P100S16 XLH-ESS-P200S16
Battery system Lithium iron phosphate/ternary/lithium titanate
Number of battery series Adaptive 15 series/16 series
Single voltage acquisition accuracy ±5mV
Battery total voltage acquisition accuracy ±0.5%@FSR
Accuracy of current collection  1%@FSR
Cell temperature acquisition channel 4 channel
Maximum charging current 100A 200A
Maximum discharge current 100A 200A
Capacitive load 60000uF
Range of working temperature  -30℃~80℃
Recommended working temperature  -30℃~70℃
Storage conditions Temperature: -20°C ~ + 45°C
Humidity:5%-95%RH
Cooling Natural cooling
Dimension W300*D113*H18 mm
PACK safety certification
Pack
Support for custom IEC62619/CE/RCM/UL1973/CEC
Communication port CAN2.0B*2CH;RS485*1CH;Bluetooth,4G
Dry contact 2 Channel
Parallel connection 15 PACKs
Altitude 3000m
Self-consumption Work<50mA
Dormancy<200uA
Support optional modules
4G module(OTA)
Bluetooth module
Heating module MAX 500W heating power
LCD display module
TFT Color Screen module
LED light module Running light: 1pcs, green;

Fault lamp: 1cs, red;

SOC indicator light: 4pcs, blue

FAQ

1.What are the advantages of the lithium battery BMS?

Various applications of energy storage are inseparable from the escort of the battery management system. Lithium battery BMS can monitor battery status in real time and intelligently manage batteries, which is very important for lithium ion energy storage systems.



2.What is the battery system of this battery management system?

This battery management system can be used for lithium iron phosphate, ternary lithium and lithium titanate batteries, adaptive 15 strings/16 strings.



3.Which brands of inverters does this lithium battery BMS support?

Depending on the inverter specified for use, the BMS adjusts the docking protocol. Currently supported PCS brands: Sermatec, Growatt, Deye, Megarevo, goodwe, SMA, Soroups, victron, LUXpower, Jingshi, SRNE.



4.Can your company provide OEM service?

Our lithium battery BMS also has a variety of color options. To welcome world cooperation, we accept OEM with your logo design.



5.How about the protection function of this lithium battery BMS?

Perfect BMS protection function and control system, multiple protection designs in lithium energy storage battery, such as, single battery overcharge and overdischarge protection, overall overcharge and overdischarge protection, overcurrent protection, short circuit protection, MOS high temperature protection, battery temperature protection and battery failure protection, etc.



6.How to upgrade my lithium battery BMS?

TYCORUN ENERGY lithium battery BMS upgrade methods include: RS485, CAN, Bluetooth upgrade option and OTA upgrade option.



7.How to choose a suitable lithium battery BMS manufacturers?



Product quality

Product quality is a very core key element of a product. When you are ready to look for energy storage lithium battery BMS manufacturers, you can first ask them which world-renowned brands they cooperate with. In this way, you can know the qualification of lithium battery BMS manufacturer.



Factory qualification

There is a fact that everyone should be very clear, there are a lot of lithium battery BMS manufacturers in China. Qualification is a very important factor in evaluating a lithium battery BMS manufacturer. If you plan to cooperate with this factory, it is necessary for you to ask the factory to issue relevant qualification certificates.



Product competitiveness

An excellent lithium battery BMS manufacturing plant often has strong product competitiveness. Therefore, if you need to find a reliable partner, you need to find a lithium battery BMS factory that can produce BMS of different battery types and different voltages and different uses. Such a factory has strong production and R&D capabilities. It can immediately give corresponding product solutions according to various needs of customers.



Technology R & D

If a lithium battery BMS manufacturer does not have R&D capabilities, he will lose market competitiveness. Because the market is highly competitive and changes every day. If this battery stacks manufacturer has independent research and development capabilities, and can often update new products and new technologies, it can show that this battery stacks manufacturer is strong. We all know that if a factory wants to do its own research and development, it needs to invest millions of dollars. It is impossible for a small factory without strength to have this budget.



Raw materials

If this lithium battery BMS factory can provide pictures, videos and specifications of production raw materials, it means that they can be assured of the materials they use. To produce high-quality high voltage batteries, good raw materials must be used.



Factory certification

As a regular LiFePO4 high voltage energy storage batteries factory, it needs to pass a series of industry certifications to ensure that every process of production is safe. Therefore, factory certification is a necessary condition for you to choose a manufacturer.



Energy storage lithium battery BMS manufacturer reputation

When you can see this LiFePO4 high voltage energy storage battery manufacturer on the Internet or at exhibitions, it means that the high voltage energy storage manufacturer has certain strength. It has real factories and strong marketing capabilities. Especially for high voltage energy storage lithium ion battery manufacturers in China, if they can be found on Alibaba and international websites, it means that this high voltage energy storage stacks system manufacturer is more real and effective, because to do these platforms well, the investment is also very large.
